IAppPowerModeHelper_vtbl.h File Reference

<DESCRIPTIOM> More...

#include "services/eloom_sysbase.h"

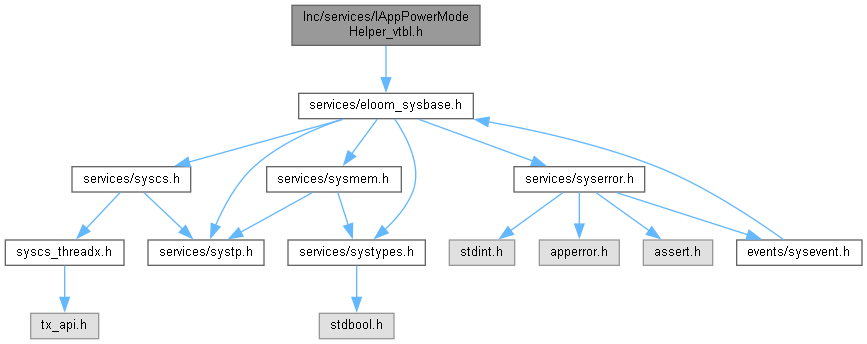

Include dependency graph for IAppPowerModeHelper_vtbl.h:

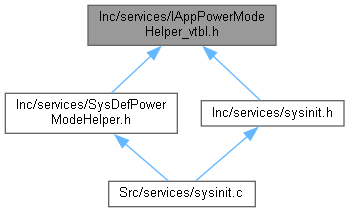

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	_IAppPowerModeHelper_vtbl
struct	_IAppPowerModeHelper

Typedefs
typedef struct _IAppPowerModeHelper_vtbl	IAppPowerModeHelper_vtbl

Functions
SYS_DEFINE_STATIC_INLINE sys_error_code_t	IapmhInit (IAppPowerModeHelper *_this)
SYS_DEFINE_STATIC_INLINE EPowerMode	IapmhComputeNewPowerMode (IAppPowerModeHelper *_this, const SysEvent xEvent)
SYS_DEFINE_STATIC_INLINE boolean_t	IapmhCheckPowerModeTransaction (IAppPowerModeHelper *_this, const EPowerMode eActivePowerMode, const EPowerMode eNewPowerMode)
SYS_DEFINE_STATIC_INLINE sys_error_code_t	IapmhDidEnterPowerMode (IAppPowerModeHelper *_this, EPowerMode ePowerMode)
SYS_DEFINE_STATIC_INLINE EPowerMode	IapmhGetActivePowerMode (IAppPowerModeHelper *_this)
SYS_DEFINE_STATIC_INLINE SysPowerStatus	IapmhGetPowerStatus (IAppPowerModeHelper *_this)
SYS_DEFINE_STATIC_INLINE boolean_t	IapmhIsLowPowerMode (IAppPowerModeHelper *_this, const EPowerMode ePowerMode)

Detailed Description

<DESCRIPTIOM>

Author

STMicroelectronics - ST-Korea - MCD Team

Version

3.0.0

Date

Oct 30, 2018

Attention

Copyright (c) 2018 STMicroelectronics. All rights reserved.

This software is licensed under terms that can be found in the LICENSE file in the root directory of this software component. If no LICENSE file comes with this software, it is provided AS-IS.

Typedef Documentation

IAppPowerModeHelper_vtbl

typedef struct _IAppPowerModeHelper_vtbl IAppPowerModeHelper_vtbl

Create type name for _IAppPowerModeHelper_vtbl.

Function Documentation

IapmhCheckPowerModeTransaction()

SYS_DEFINE_STATIC_INLINE boolean_t IapmhCheckPowerModeTransaction ( IAppPowerModeHelper *  _this, const EPowerMode  eActivePowerMode, const EPowerMode  eNewPowerMode  )

inline

Used mainly for debug purpose. It checks if a request power mode transaction is valid.

Parameters

_this	[IN] specifies a pointer to the object.
eActivePowerMode	[IN] species the actual power mode.
eNewPowerMode	[IN] specifies a new power mode.

Returns

TRUE if the transaction is valid. If the transaction is not valid the program execution is stopped.

IapmhComputeNewPowerMode()

SYS_DEFINE_STATIC_INLINE EPowerMode IapmhComputeNewPowerMode ( IAppPowerModeHelper *  _this, const SysEvent  xEvent  )

inline

Compute the new power mode depending on the input event.

Parameters

_this	[IN] specifies a pointer to the object.
xEvent	[IN] an power mode input event.

Returns

the power mode that the system should enter due to the event.

IapmhDidEnterPowerMode()

SYS_DEFINE_STATIC_INLINE sys_error_code_t IapmhDidEnterPowerMode ( IAppPowerModeHelper *  _this, EPowerMode  ePowerMode  )

inline

Used by the system to enter the new power mode. It is called after all application task are ready for the new power mode.

Parameters

_this	[IN] specifies a pointer to the object.
ePowerMode	[IN] specifies a new power mode.

IapmhGetActivePowerMode()

SYS_DEFINE_STATIC_INLINE EPowerMode IapmhGetActivePowerMode ( IAppPowerModeHelper *  _this )

inline

Get the active power mode.

Parameters

_this

[IN] specifies a pointer to the object.

Returns

the active power mode.

IapmhGetPowerStatus()

SYS_DEFINE_STATIC_INLINE SysPowerStatus IapmhGetPowerStatus ( IAppPowerModeHelper *  _this )

inline

Get a copy of the actual power status.

Parameters

_this

[IN] specifies a pointer to the object.

Returns

a copy of the actual power status.

IapmhInit()

SYS_DEFINE_STATIC_INLINE sys_error_code_t IapmhInit ( IAppPowerModeHelper *  _this )

inline

Initialize the interface IAppPowerModeHelper. It should be called after the object allocation and before using the object.

Parameters

_this

[IN] specifies a pointer to the object.

Returns

SYS_NO_ERROR_CODE if success, an error code otherwise.

IapmhIsLowPowerMode()

SYS_DEFINE_STATIC_INLINE boolean_t IapmhIsLowPowerMode ( IAppPowerModeHelper *  _this, const EPowerMode  ePowerMode  )

inline

Check if a power mode is a low power mode that put the MCU in STOPx mode or higher power efficient mode.

Parameters

_this	[IN] specifies a pointer to the object.
ePowerMode	[IN] species a power mode.

Returns

TRUE if ePowerMode is a low power mode, ‘FALSE’ otherwise.
