IAppPowerModeHelper.h File Reference

<DESCRIPTIOM> More...

#include "services/eloom_sysbase.h"
#include "services/syslowpower.h"

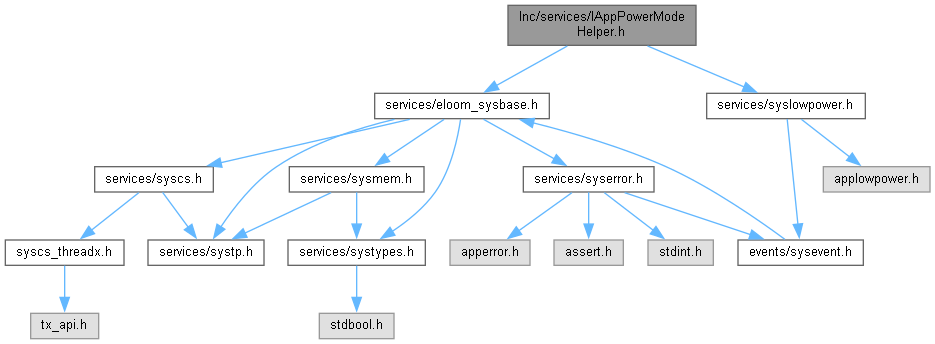

Include dependency graph for IAppPowerModeHelper.h:

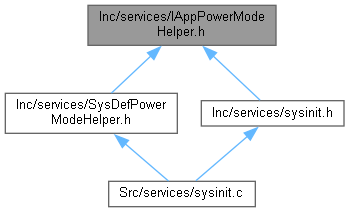

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Typedefs
typedef struct _IAppPowerModeHelper	IAppPowerModeHelper

Functions
static sys_error_code_t	IapmhInit (IAppPowerModeHelper *_this)
static EPowerMode	IapmhComputeNewPowerMode (IAppPowerModeHelper *_this, const SysEvent xEvent)
static boolean_t	IapmhCheckPowerModeTransaction (IAppPowerModeHelper *_this, const EPowerMode eActivePowerMode, const EPowerMode eNewPowerMode)
static sys_error_code_t	IapmhDidEnterPowerMode (IAppPowerModeHelper *_this, EPowerMode ePowerMode)
static EPowerMode	IapmhGetActivePowerMode (IAppPowerModeHelper *_this)
static SysPowerStatus	IapmhGetPowerStatus (IAppPowerModeHelper *_this)
static boolean_t	IapmhIsLowPowerMode (IAppPowerModeHelper *_this, const EPowerMode ePowerMode)

Detailed Description

<DESCRIPTIOM>

Author

STMicroelectronics - ST-Korea - MCD Team

Version

3.0.0

Date

Oct 30, 2018

Attention

Copyright (c) 2018 STMicroelectronics. All rights reserved.

This software is licensed under terms that can be found in the LICENSE file in the root directory of this software component. If no LICENSE file comes with this software, it is provided AS-IS.

Typedef Documentation

IAppPowerModeHelper

typedef struct _IAppPowerModeHelper IAppPowerModeHelper

Create type name for _IAppPowerModeHelper.

Function Documentation

IapmhCheckPowerModeTransaction()

static boolean_t IapmhCheckPowerModeTransaction ( IAppPowerModeHelper *  _this, const EPowerMode  eActivePowerMode, const EPowerMode  eNewPowerMode  )

inlinestatic

Used mainly for debug purpose. It checks if a request power mode transaction is valid.

Parameters

_this	[IN] specifies a pointer to the object.
eActivePowerMode	[IN] species the actual power mode.
eNewPowerMode	[IN] specifies a new power mode.

Returns

TRUE if the transaction is valid. If the transaction is not valid the program execution is stopped.

IapmhComputeNewPowerMode()

static EPowerMode IapmhComputeNewPowerMode ( IAppPowerModeHelper *  _this, const SysEvent  xEvent  )

inlinestatic

Compute the new power mode depending on the input event.

Parameters

_this	[IN] specifies a pointer to the object.
xEvent	[IN] an power mode input event.

Returns

the power mode that the system should enter due to the event.

IapmhDidEnterPowerMode()

static sys_error_code_t IapmhDidEnterPowerMode ( IAppPowerModeHelper *  _this, EPowerMode  ePowerMode  )

inlinestatic

Used by the system to enter the new power mode. It is called after all application task are ready for the new power mode.

Parameters

_this	[IN] specifies a pointer to the object.
ePowerMode	[IN] specifies a new power mode.

IapmhGetActivePowerMode()

static EPowerMode IapmhGetActivePowerMode ( IAppPowerModeHelper *  _this )

inlinestatic

Get the active power mode.

Parameters

_this

[IN] specifies a pointer to the object.

Returns

the active power mode.

IapmhGetPowerStatus()

static SysPowerStatus IapmhGetPowerStatus ( IAppPowerModeHelper *  _this )

inlinestatic

Get a copy of the actual power status.

Parameters

_this

[IN] specifies a pointer to the object.

Returns

a copy of the actual power status.

IapmhInit()

static sys_error_code_t IapmhInit ( IAppPowerModeHelper *  _this )

inlinestatic

Initialize the interface IAppPowerModeHelper. It should be called after the object allocation and before using the object.

Parameters

_this

[IN] specifies a pointer to the object.

Returns

SYS_NO_ERROR_CODE if success, an error code otherwise.

IapmhIsLowPowerMode()

static boolean_t IapmhIsLowPowerMode ( IAppPowerModeHelper *  _this, const EPowerMode  ePowerMode  )

inlinestatic

Check if a power mode is a low power mode that put the MCU in STOPx mode or higher power efficient mode.

Parameters

_this	[IN] specifies a pointer to the object.
ePowerMode	[IN] species a power mode.

Returns

TRUE if ePowerMode is a low power mode, ‘FALSE’ otherwise.
