HWDriverMap.h File Reference

This class implements a map between a driver Instance and it's parameters. More...

#include "drivers/IDriver.h"
#include "drivers/IDriver_vtbl.h"

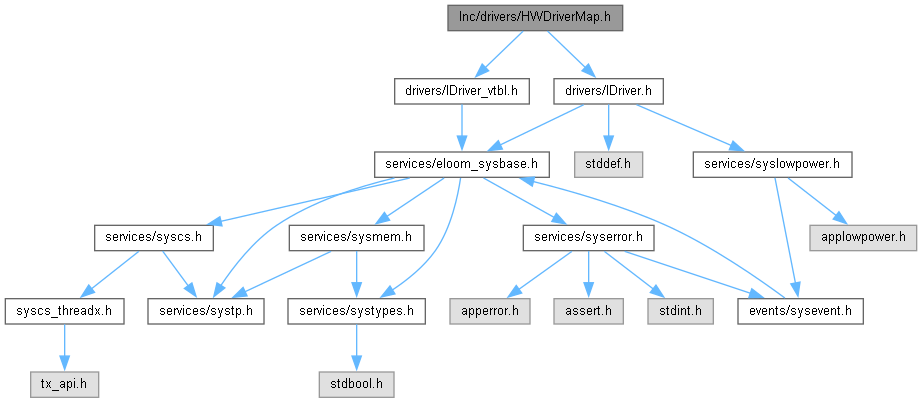

Include dependency graph for HWDriverMap.h:

Go to the source code of this file.

Data Structures
struct	_HWDriverMapValue
struct	_HWDriverMapElement
struct	_HWDriverMap

Macros
#define	HDM_NULL_KEY   (0U)
#define	HDME_IS_EMPTY(p_element)   (((p_element)->value.p_driver_obj == NULL) && ((p_element)->key == HDM_NULL_KEY))

Typedefs
typedef struct _HWDriverMapValue	HWDriverMapValue_t
typedef struct _HWDriverMapElement	HWDriverMapElement_t
typedef struct _HWDriverMap	HWDriverMap_t

Functions
static sys_error_code_t	HWDriverMap_Init (HWDriverMap_t *_this, HWDriverMapElement_t *p_elements, uint16_t size)
static HWDriverMapValue_t *	HWDriverMap_FindByKey (HWDriverMap_t *_this, uint32_t key)
static HWDriverMapElement_t *	HWDriverMap_AddElement (HWDriverMap_t *_this, uint32_t key, IDriver *p_instance)
static bool	HWDriverMap_RemoveElement (HWDriverMap_t *_this, uint32_t key)
static bool	HWDriverMap_IsInitialized (HWDriverMap_t *_this)
static bool	HWDriverMap_GetElementCount (const HWDriverMap_t *const _this)

Detailed Description

This class implements a map between a driver Instance and it's parameters.

Author

SRA - GPM

The map is a collection of pairs (key, value) named element, where:

• key is unique: a map cannot contains duplicate keys. each key can map to at most one value.
• the value is a combination of an IDriver plus an application specific parameter s displayed in the following image

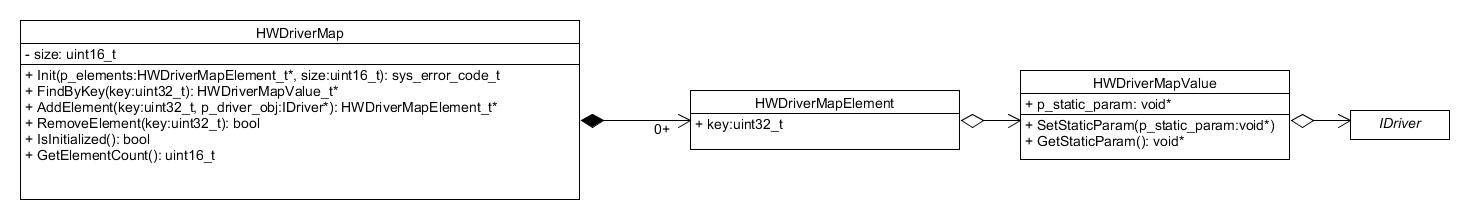

Fig.1 - class diagram

Attention

Copyright (c) 2023 STMicroelectronics. All rights reserved.

This software is licensed under terms that can be found in the LICENSE file in the root directory of this software component. If no LICENSE file comes with this software, it is provided AS-IS.

Macro Definition Documentation

HDM_NULL_KEY

#define HDM_NULL_KEY   (0U)

reserved key value to specify an invalid key.

HDME_IS_EMPTY

#define HDME_IS_EMPTY

(

p_element

)

(((p_element)->value.p_driver_obj == NULL) && ((p_element)->key == HDM_NULL_KEY))

Check if an HWDriverMapElement_t is empty. The element in the map are not allocated and released dynamically, but rather the element are marked as empty.

Typedef Documentation

HWDriverMap_t

typedef struct _HWDriverMap HWDriverMap_t

This map is implemented as an array of size elements.

HWDriverMapElement_t

typedef struct _HWDriverMapElement HWDriverMapElement_t

Specifies the element of the map. It is the pair (key, value)

HWDriverMapValue_t

typedef struct _HWDriverMapValue HWDriverMapValue_t

Specifies the value of the elements stored in the map.

Function Documentation

HWDriverMap_AddElement()

static HWDriverMapElement_t * HWDriverMap_AddElement ( HWDriverMap_t *  _this, uint32_t  key, IDriver *  p_instance  )

inlinestatic

Add a new pair (key, IDriver) to the map. The pair (key, IDriver) is namebd element. If the key is already present to the map then the element is not added and the method return NULL. If the element is already present in the map then the method return the element.

Parameters

_this	[IN] pointer to a valid HWDriverMap_t object.
key	[IN] unique ID for the element.
[IN]	p_instance specifies the IDriver instance of the element's value.

Returns

a pointer the the new added element (key, value) if success, or NULL if the element cannot be added into the map.

HWDriverMap_FindByKey()

static HWDriverMapValue_t * HWDriverMap_FindByKey ( HWDriverMap_t *  _this, uint32_t  key  )

inlinestatic

Searches the map for an element with a the corresponding key

Parameters

_this	[IN] pointer to a valid HWDriverMap_t object.
key	[IN] key to be searched.

Returns

The corresponding HWDriverMapElement_t if found, NULL otherwise.

HWDriverMap_GetElementCount()

static bool HWDriverMap_GetElementCount ( const HWDriverMap_t *const  _this )

inlinestatic

Get the number of element (key, value) present in the map.

Parameters

_this

[IN] pointer to a valid HWDriverMap_t object.

Returns

the number of element (key, value) present in the map.

HWDriverMap_Init()

static sys_error_code_t HWDriverMap_Init ( HWDriverMap_t *  _this, HWDriverMapElement_t *  p_elements, uint16_t  size  )

inlinestatic

Initialize the Driver map.

Parameters

_this	[IN] pointer to a valid HWDriverMap_t object.
p_elements	[IN] pointer to a valid HWDriverMapElement_t array.
size	[IN] number of elements in the array

Returns

SYS_NO_ERROR_CODE if success, an error code otherwise.

HWDriverMap_IsInitialized()

static bool HWDriverMap_IsInitialized ( HWDriverMap_t *  _this )

inlinestatic

Check if the map has been initialized. If a map is not initialized, any call to the map API has unknown effect. To initialize a map use the method HWDriverMap_Init().

Parameters

_this

[IN] pointer to a valid HWDriverMap_t object.

Returns

true if the map has been initialized, false otherwise.

HWDriverMap_RemoveElement()

static bool HWDriverMap_RemoveElement ( HWDriverMap_t *  _this, uint32_t  key  )

inlinestatic

Remove the element with the specific key from the map. The element is marked as removed, and no memory de-allocation is done.

Parameters

_this	[IN] pointer to a valid HWDriverMap_t object.
key	[IN] unique ID for the element.

Returns

true if the element as been removed from the map, false if the element is not in the map.
