IDriver.h File Reference

Public API for the Driver Interface. More...

#include "services/eloom_sysbase.h"
#include "services/syslowpower.h"
#include <stddef.h>

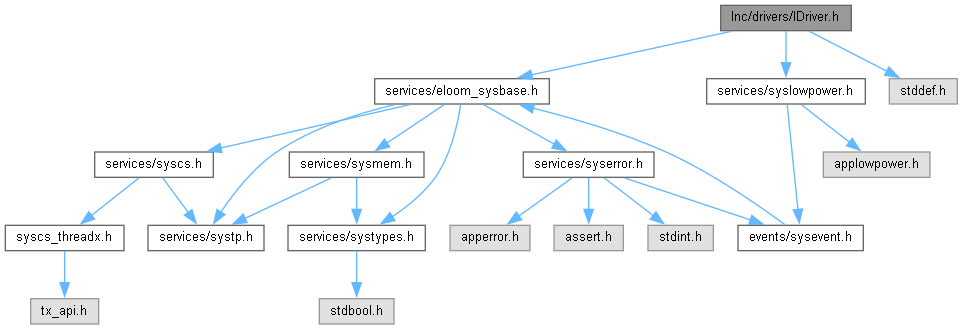

Include dependency graph for IDriver.h:

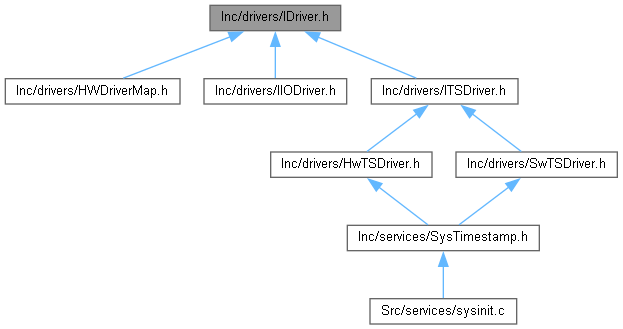

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Typedefs
typedef struct _IDriver	IDriver

Functions
static sys_error_code_t	IDrvInit (IDriver *_this, void *pParams)
static sys_error_code_t	IDrvStart (IDriver *_this)
static sys_error_code_t	IDrvStop (IDriver *_this)
static sys_error_code_t	IDrvDoEnterPowerMode (IDriver *_this, const EPowerMode eActivePowerMode, const EPowerMode eNewPowerMode)
static sys_error_code_t	IDrvReset (IDriver *_this, void *pParams)

Detailed Description

Public API for the Driver Interface.

Author

STMicroelectronics - ST-Korea - MCD Team

Version

3.0.0

Date

Sep 6, 2016

IDriver is the base interface for the Driver subsystem. Each driver implements this interface.

Attention

Copyright (c) 2016 STMicroelectronics. All rights reserved.

This software is licensed under terms that can be found in the LICENSE file in the root directory of this software component. If no LICENSE file comes with this software, it is provided AS-IS.

Typedef Documentation

IDriver

typedef struct _IDriver IDriver

Creates a type name for _IDriver.

Function Documentation

IDrvDoEnterPowerMode()

static sys_error_code_t IDrvDoEnterPowerMode ( IDriver *  _this, const EPowerMode  eActivePowerMode, const EPowerMode  eNewPowerMode  )

inlinestatic

This function is called by the framework when the system is changing the power mode. The driver must reconfigure itself according the new power mode.

Parameters

_this	[IN] specifies a pointer to a IDriver object.
eActivePowerMode	[IN] specifies the actual power mode.
eNewPowerMode	[IN] specifies the new power mode.

Returns

SYS_NO_ERROR_CODE if success, an error code otherwise.

Here is the call graph for this function:

IDrvInit()

static sys_error_code_t IDrvInit ( IDriver *  _this, void *  pParams  )

inlinestatic

Initialize the driver. This method should be used by a task object during the hardware initialization process.

Parameters

_this	[IN] specifies a pointer to a IDriver object.
pParams	[IN] specifies a pointer to a initialization parameters defined by a subclass.

Returns

SYS_NO_ERROR_CODE if success, an error code otherwise.

Here is the call graph for this function:

IDrvReset()

static sys_error_code_t IDrvReset ( IDriver *  _this, void *  pParams  )

inlinestatic

Reset the peripherals owned by the driver. This method should operate at hardware level, for example by using the HAL_XXX_DeInit() and HAL_XXX_Init() functions.

Parameters

_this	[IN] specifies a pointer to a IDriver object.
pParams	[IN] specifies a pointer to a parameters defined by a subclass.

Returns

SYS_NO_ERROR_CODE if success, an error code otherwise.

Here is the call graph for this function:

IDrvStart()

static sys_error_code_t IDrvStart ( IDriver *  _this )

inlinestatic

Start the driver. This method enable the driver normal processing. For example it enables the related IRQ. It should be called after the driver initialization.

Parameters

_this

s[IN] specifies a pointer to a IDriver object.

Returns

SYS_NO_ERROR_CODE if success, an error code otherwise.

Here is the call graph for this function:

IDrvStop()

static sys_error_code_t IDrvStop ( IDriver *  _this )

inlinestatic

Stop a driver. This method disable the driver normal operation. For example it disables the IRQ. It doesn't de-initialize the driver.

Parameters

_this

[IN] specifies a pointer to a IDriver object.

Returns

SYS_NO_ERROR_CODE if success, an error code otherwise.

Here is the call graph for this function:
