This file declares the public API related to the power management. More...

#include "events/sysevent.h"
#include "applowpower.h"

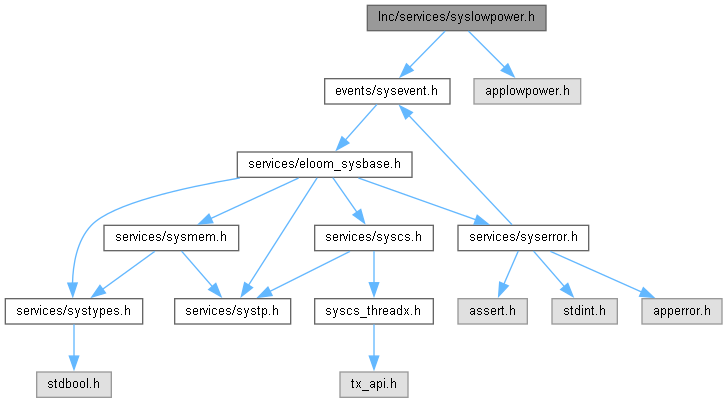

Include dependency graph for syslowpower.h:

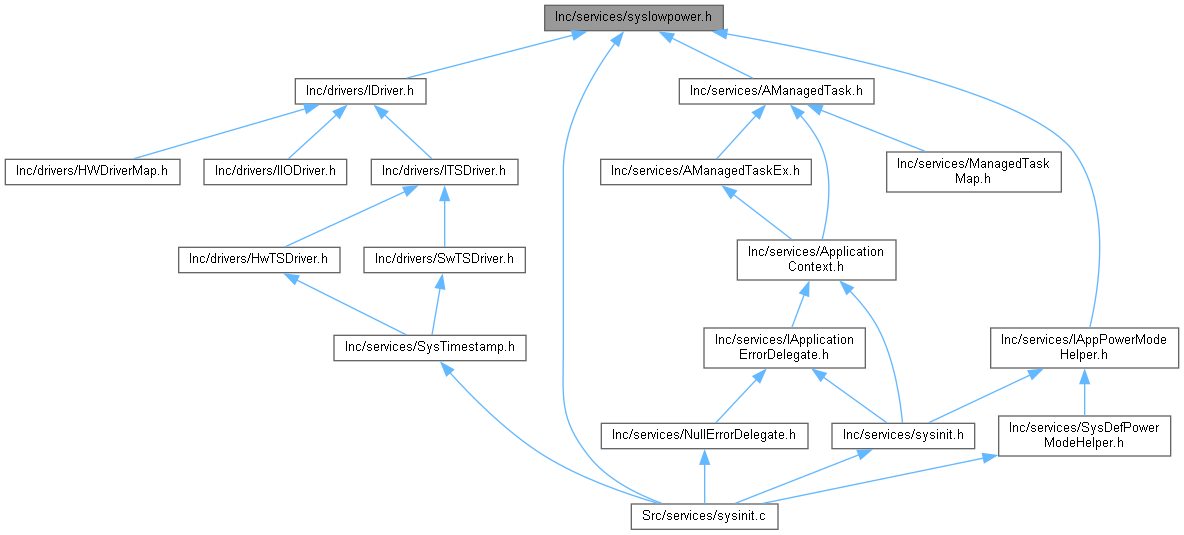

This graph shows which files directly or indirectly include this file:

Macros
#define	SYS_PM_MAKE_EVENT(src, params) ((((src) & 0X7U) \| (((params)<<3) & 0xF8U)) & 0x000000FF)

#define	SYS_IS_CALLED_FROM_ISR() (((SCB->ICSR) & (SCB_ICSR_VECTACTIVE_Msk)) != 0U ? TRUE : FALSE)

Functions
SysPowerStatus	SysGetPowerStatus (void)

EPowerMode	SysGetPowerMode (void)

sys_error_code_t	SysPostPowerModeEvent (SysEvent xEvent)

Detailed Description

This file declares the public API related to the power management.

Author: STMicroelectronics - ST-Korea - MCD Team

Version: 3.0.0

Date: Jun 2, 2017

This header file declares the public API and the data structures used by the application tasks in order to:

Inform the system INIT task about the the status of the events that can trigger a power mode change.
Request to switch to a power mode.

Attention

This software is licensed under terms that can be found in the LICENSE file in the root directory of this software component. If no LICENSE file comes with this software, it is provided AS-IS.

Macro Definition Documentation

◆ SYS_IS_CALLED_FROM_ISR

#define SYS_IS_CALLED_FROM_ISR ( ) (((SCB->ICSR) & (SCB_ICSR_VECTACTIVE_Msk)) != 0U ? TRUE : FALSE)

Check if the current code is inside an ISR or not.

◆ SYS_PM_MAKE_EVENT

#define SYS_PM_MAKE_EVENT	(	src,
		params
	)	((((src) & 0X7U) \| (((params)<<3) & 0xF8U)) & 0x000000FF)

Macro to make system power mode event.

Parameters

src	[IN] specifies the source of the event
params	[IN] specifies a parameter. Its value depend on the event source.

Function Documentation

◆ SysGetPowerMode()

EPowerMode SysGetPowerMode ( void )

Get the current system power mode.

Returns: the current system power mode.

Here is the call graph for this function:

◆ SysGetPowerStatus()

SysPowerStatus SysGetPowerStatus ( void )

Get a copy of the system status related to the power management.

Returns: copy of the system status related to the power management.

Here is the call graph for this function:

◆ SysPostPowerModeEvent()

sys_error_code_t SysPostPowerModeEvent ( SysEvent xEvent )

Notify the system about an event related to the power mode management. This function can be called also from an ISR.
