Debug Log. More...

#include "services/eloom_sysbase.h"
#include <stdint.h>
#include "sysdebug_config.h"

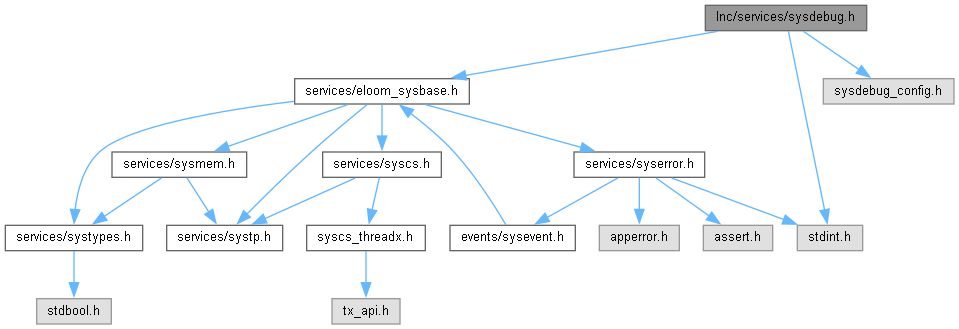

Include dependency graph for sysdebug.h:

This graph shows which files directly or indirectly include this file:

Macros
#define	SYS_DBG_LEVEL_ALL 0x00U
	All debug message are sent to the debug channel.

#define	SYS_DBG_LEVEL_VERBOSE 0x01U
	A general message for system developers.

#define	SYS_DBG_LEVEL_LLA 0x02U
	A message for system developers generated by a Low Level API function.

#define	SYS_DBG_LEVEL_SL 0x03U
	A message for system developers generated by a Service Layer function.

#define	SYS_DBG_LEVEL_DEFAULT 0x04U
	A message generated by application code.

#define	SYS_DBG_LEVEL_WARNING 0x05U
	A message generated when a minor error occurs. The system is probably able to auto-recovers.

#define	SYS_DBG_LEVEL_SEVERE 0x06U
	A message generated when a critical error occurs. The system probably hangs.

#define	SYS_DBG_ON 0x80U
	Flag for SYS_DEBUGF control byte to enable the debug message for that module.

#define	SYS_DBG_OFF 0x00U
	Flag for SYS_DEBUGF control byte to disable the debug message for that module.

#define	SYS_DBG_HALT 0x08U
	Flag for SYS_DEBUGF control byte to halt after printing a debug message for that module.

Functions
int	SysDebugHardwareInit (void)

int	SysDebugInit (void)

void	SysDebugStartRunTimeStatsTimer (void)

void	SysDebugLogFreeHeapSize (void)

Detailed Description

Debug Log.

Author: STMicroelectronics - ST-Korea - MCD Team

Version: 3.0.0

Date: Oct 10, 2016

This file implement a set of macro in order to provide a simple way to create a log when the application is compiled in DEBUG.

Attention

This software is licensed under terms that can be found in the LICENSE file in the root directory of this software component. If no LICENSE file comes with this software, it is provided AS-IS.

Macro Definition Documentation

◆ SYS_DBG_LEVEL_ALL

#define SYS_DBG_LEVEL_ALL 0x00U

All debug message are sent to the debug channel.

The lower three bits of the debug control byte specifies debug level according to the following convention:

0 all
1 verbose: a general message for system developers.
2 low level api: a message for system developers generated by a Low Level API function.
3 service layer: a message for system developers generated by a Service Layer function.
4 default: a message generated by application code.
5 warning: a message generated when a minor error occurs. The system is probably able to auto-recovers.
6 severe: a message generated when a critical error occurs. The system probably hangs.

Function Documentation

◆ SysDebugHardwareInit()

int SysDebugHardwareInit ( void )

Initialize the hardware of the debug communication port.

Returns: 0 if success, an error code otherwise.

◆ SysDebugInit()

int SysDebugInit ( void )

Initialize the debug support.

Returns: 0 if success, an error code otherwise.

◆ SysDebugLogFreeHeapSize()

void SysDebugLogFreeHeapSize ( void )

Display in the debug log the size of the available eLooM heap.

◆ SysDebugStartRunTimeStatsTimer()

void SysDebugStartRunTimeStatsTimer ( void )

Enable the IRQ for the timer used as timebase in order to compute the FreeRTOS statistics about the MCU usage on per task basis.
