Private API for the Timestamp Driver Interface. More...
#include "drivers/IDriver_vtbl.h"

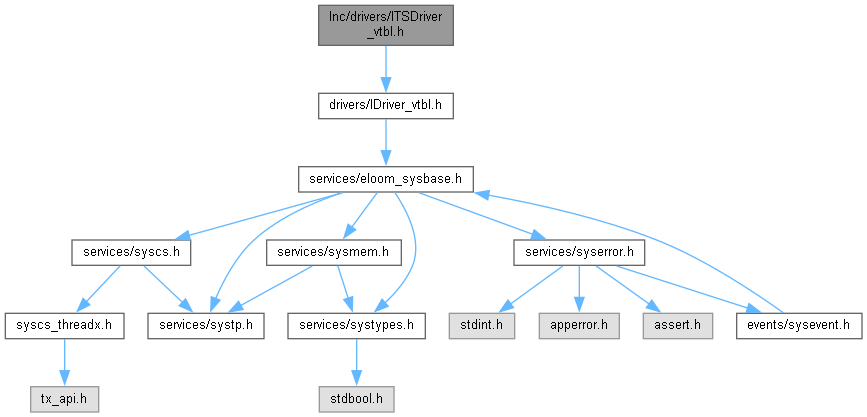

Include dependency graph for ITSDriver_vtbl.h:

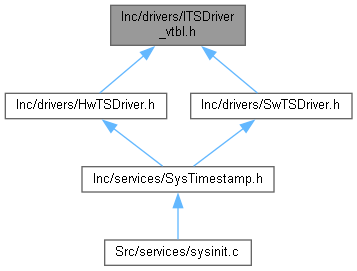

This graph shows which files directly or indirectly include this file:
Go to the source code of this file.
Data Structures | |
| struct | _ITSDriver_vtbl |
| struct | _ITSDriver_t |
Typedefs | |
| typedef struct _ITSDriver_vtbl | ITSDriver_vtbl |
Functions | |
| SYS_DEFINE_STATIC_INLINE uint64_t | ITSDrvGetTimeStamp (ITSDriver_t *_this) |
Detailed Description
Private API for the Timestamp Driver Interface.
- Version
- 4.0.0
- Date
- Mar 15, 2022
This header file must be included included in all source files that use the ITSDriver public API.
- Attention
Copyright (c) 2022 STMicroelectronics. All rights reserved.
This software is licensed under terms that can be found in the LICENSE file in the root directory of this software component. If no LICENSE file comes with this software, it is provided AS-IS.
Typedef Documentation
◆ ITSDriver_vtbl
| typedef struct _ITSDriver_vtbl ITSDriver_vtbl |
Create type name for _ITSDriver_vtbl.
Function Documentation
◆ ITSDrvGetTimeStamp()
|
inline |
Public API declaration Get the raw value of the counter of the timer used to implement the driver.
- Parameters
-
_this [IN] specifies a pointer to a ITSDriver_t object.
- Returns
- a 32 bit value of the
