Private API for the I/O Driver Interface. More...

#include "drivers/IDriver_vtbl.h"

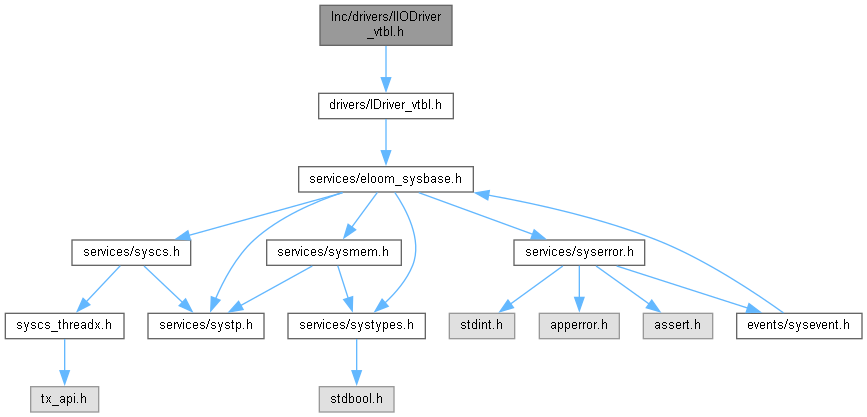

Include dependency graph for IIODriver_vtbl.h:

Data Structures
struct	_IIODriver_vtbl

struct	_IIODriver

Typedefs
typedef struct _IIODriver_vtbl	IIODriver_vtbl

Functions
SYS_DEFINE_STATIC_INLINE sys_error_code_t	IIODrvWrite (IIODriver _this, uint8_t pDataBuffer, uint16_t nDataSize, uint16_t nChannel)

SYS_DEFINE_STATIC_INLINE sys_error_code_t	IIODrvRead (IIODriver _this, uint8_t pDataBuffer, uint16_t nDataSize, uint16_t nChannel)

Detailed Description

Private API for the I/O Driver Interface.

Author: STMicroelectronics - ST-Korea - MCD Team

Version: 3.0.0

Date: Aug 6, 2019

This header file must be included included in all source files that use the IIODriver public API.

Attention

This software is licensed under terms that can be found in the LICENSE file in the root directory of this software component. If no LICENSE file comes with this software, it is provided AS-IS.

Typedef Documentation

◆ IIODriver_vtbl

typedef struct _IIODriver_vtbl IIODriver_vtbl

Create type name for _IIODriver_vtbl.

Function Documentation

◆ IIODrvRead()

SYS_DEFINE_STATIC_INLINE sys_error_code_t IIODrvRead	(	IIODriver *	_this,
		uint8_t *	pDataBuffer,
		uint16_t	nDataSize,
		uint16_t	nChannel
	)

inline

Parameters

_this	[IN] specifies a pointer to a IIODriver object.
pDataBuffer	[OUT] specifies the buffer used to store the received data.
nDataSize	[IN] specified the size in byte of the buffer.
nChannel	[IN] specifies the channel from where to read the data.

Returns: SYS_NO_ERROR_CODE if success, an error code otherwise.

◆ IIODrvWrite()

SYS_DEFINE_STATIC_INLINE sys_error_code_t IIODrvWrite	(	IIODriver *	_this,
		uint8_t *	pDataBuffer,
		uint16_t	nDataSize,
		uint16_t	nChannel
	)
