IEventSrc.h File Reference

Event Source interface. More...

#include "events/IEvent.h"
#include "events/IEventListener.h"
#include "events/IEventListener_vtbl.h"

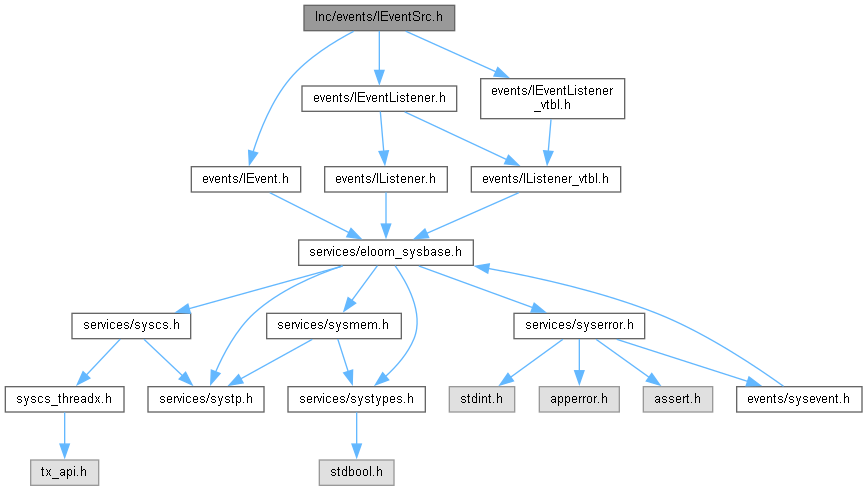

Include dependency graph for IEventSrc.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Functions
static sys_error_code_t	IEventSrcInit (IEventSrc *_this)
static sys_error_code_t	IEventSrcAddEventListener (IEventSrc *_this, IEventListener *pListener)
static sys_error_code_t	IEventSrcRemoveEventListener (IEventSrc *_this, IEventListener *pListener)
static uint32_t	IEventSrcGetMaxListenerCount (const IEventSrc *_this)
static sys_error_code_t	IEventSrcSendEvent (const IEventSrc *_this, const IEvent *pxEvent, void *pvParams)

Detailed Description

Event Source interface.

Author

STMicroelectronics - ST-Korea - MCD Team

Version

3.0.0

Date

Apr 6, 2017

An Event Source object provides the API to add / remove Event Listener objects, and to notify the registered listeners.

Attention

Copyright (c) 2017 STMicroelectronics. All rights reserved.

This software is licensed under terms that can be found in the LICENSE file in the root directory of this software component. If no LICENSE file comes with this software, it is provided AS-IS.

Function Documentation

IEventSrcAddEventListener()

static sys_error_code_t IEventSrcAddEventListener ( IEventSrc *  _this, IEventListener *  pListener  )

inlinestatic

Register a listener with this event source.

Parameters

_this	[IN] specifies a pointer to an IEventSrc object.
pListener	[IN] specifies a pointer to an IEventListener object.

Returns

SYS_NO_ERROR_CODE if success, an subclass specific error code otherwise.

IEventSrcGetMaxListenerCount()

static uint32_t IEventSrcGetMaxListenerCount ( const IEventSrc *  _this )

inlinestatic

Get the maximum number of IEventListener that can be registered with this event source.

Parameters

_this

[IN] specifies a pointer to an IEventSrc object.

Returns

the maximum number of IEventListener that can be registered with _this event source

IEventSrcInit()

static sys_error_code_t IEventSrcInit ( IEventSrc *  _this )

inlinestatic

Initialize an event source. This function should be called after the

Parameters

_this

[IN] specifies a pointer to an IEventSrc object.

Returns

SYS_NO_ERROR_CODE if success, an subclass specific error code otherwise.

IEventSrcRemoveEventListener()

static sys_error_code_t IEventSrcRemoveEventListener ( IEventSrc *  _this, IEventListener *  pListener  )

inlinestatic

Remove a listener from this event source,

Parameters

_this	[IN] specifies a pointer to an IEventSrc object.
pListener	[IN] specifies a pointer to an IEventListener object.

Returns

SYS_NO_ERROR_CODE if success, an subclass specific error code otherwise.

IEventSrcSendEvent()

static sys_error_code_t IEventSrcSendEvent ( const IEventSrc *  _this, const IEvent *  pxEvent, void *  pvParams  )

inlinestatic

Send an IEvent to all the registered IEventListener.

Parameters

_this	[IN] specifies a pointer to an IEventSrc object.
pxEvent	[IN] specifies a pointer to an IEvent object.
pvParams	[IN] specifies a generic pointer that can be used by the application extend the semantic Event design pattern.

Returns

SYS_NO_ERROR_CODE if success, an subclass specific error code otherwise.
