Application error manager delegate. More...

#include "services/ApplicationContext.h"
#include "services/IErrorFirstResponder.h"
#include "services/IErrorFirstResponderVtbl.h"

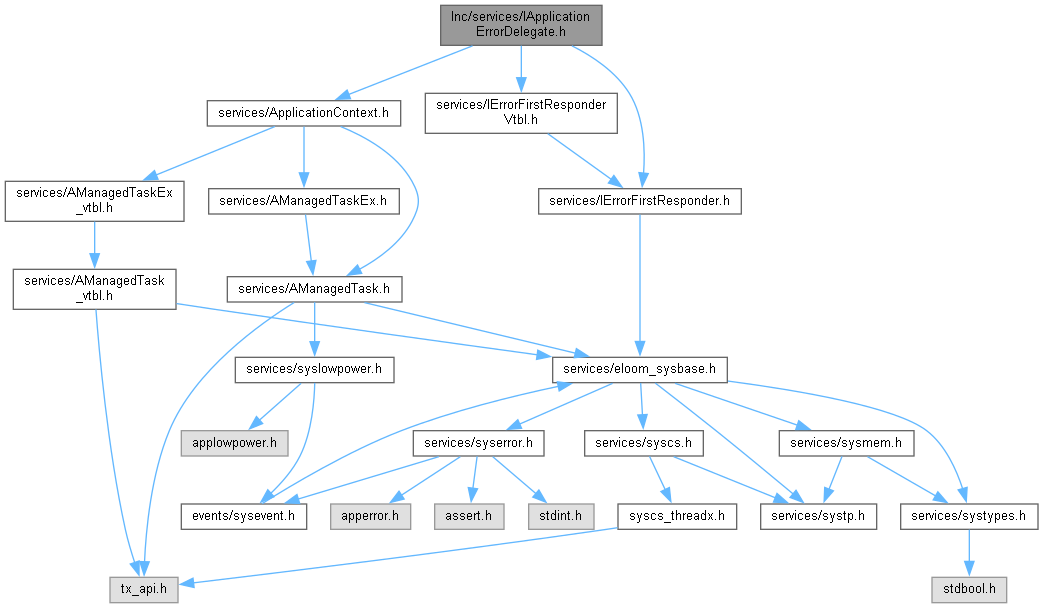

Include dependency graph for IApplicationErrorDelegate.h:

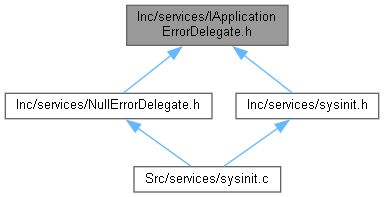

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Typedefs
typedef struct _IApplicationErrorDelegate	IApplicationErrorDelegate

Functions
static sys_error_code_t	IAEDInit (IApplicationErrorDelegate _this, void pParams)

static sys_error_code_t	IAEDOnStartApplication (IApplicationErrorDelegate _this, ApplicationContext pxContext)

static sys_error_code_t	IAEDProcessEvent (IApplicationErrorDelegate _this, ApplicationContext pxContext, SysEvent xEvent)

static sys_error_code_t	IAEDOnNewErrEvent (IApplicationErrorDelegate *_this, SysEvent xEvent)

static boolean_t	IAEDIsLastErrorPending (IApplicationErrorDelegate *_this)

static sys_error_code_t	IAEDAddFirstResponder (IApplicationErrorDelegate _this, IErrFirstResponder pFirstResponder, uint8_t nPriority)

static sys_error_code_t	IAEDRemoveFirstResponder (IApplicationErrorDelegate _this, IErrFirstResponder pFirstResponder)

static uint8_t	IAEDGetMaxFirstResponderPriority (const IApplicationErrorDelegate *_this)

static void	IAEDResetCounter (IApplicationErrorDelegate *_this)

Detailed Description

Application error manager delegate.

Author: STMicroelectronics - ST-Korea - MCD Team

Version: 3.0.0

Date: Aug 4, 2017

This interface is implemented by a application specific object that is in charge to manage the error events. The application can implement the SysGetErrorDelegate() function to provide its own IApplicationErrorDelegate.

Attention

This software is licensed under terms that can be found in the LICENSE file in the root directory of this software component. If no LICENSE file comes with this software, it is provided AS-IS.

Typedef Documentation

◆ IApplicationErrorDelegate

typedef struct _IApplicationErrorDelegate IApplicationErrorDelegate

Create type name for _IApplicationErrorDelegate.

Function Documentation

◆ IAEDAddFirstResponder()

static sys_error_code_t IAEDAddFirstResponder	(	IApplicationErrorDelegate *	_this,
		IErrFirstResponder *	pFirstResponder,
		uint8_t	nPriority
	)

inlinestatic

Add a first responder object. The first responders are grouped in a priority set. Zero is the highest priority. If an IErrFirstResponder object with the same priority was already added, then it is replaced with the new one.

Parameters

_this	[IN] specifies a pointer to an IApplicationErrorDelegate object.
pFirstResponder	[IN] specifies a pointer to the a first responder object. If it is NULL then the IErrFirstResponder with nPriority priority is removed from the application error delegate.
nPriority	[IN] specifies the priority of the error first responder. Zero is the highest priority.

Returns: SYS_NO_ERROR_CODE if success, an error code otherwise.

◆ IAEDGetMaxFirstResponderPriority()

static uint8_t IAEDGetMaxFirstResponderPriority ( const IApplicationErrorDelegate * _this )

inlinestatic

Get the highest priority allowed for a first responder object.

Parameters

_this [IN] specifies a pointer to an IApplicationErrorDelegate object.

Returns: he highest priority allowed for a first responder object.

◆ IAEDInit()

static sys_error_code_t IAEDInit	(	IApplicationErrorDelegate *	_this,
		void *	pParams
	)

inlinestatic

Initialize the driver. This method should be used by a task object during the hardware initialization process.

Parameters

_this	[IN] specifies a pointer to an IApplicationErrorDelegate object.
pParams	specifies a pointer to a subclass defined initialization parameters.

Returns: SYS_NO_ERROR_CODE if success, an error code otherwise.

◆ IAEDIsLastErrorPending()

static boolean_t IAEDIsLastErrorPending ( IApplicationErrorDelegate * _this )

inlinestatic

Used by the AED to notify the system if the last error has been recovered or not.

Parameters

_this [IN] specifies a pointer to an IApplicationErrorDelegate object.

Returns: TRUE if the last error has been recovered, FALSE otherwise

◆ IAEDOnNewErrEvent()

static sys_error_code_t IAEDOnNewErrEvent	(	IApplicationErrorDelegate *	_this,
		SysEvent	xEvent
	)

inlinestatic

The INIT task call this method as soon as a new error event is posted by the application. This allows the application error delegate to provide a first respond to critical errors. The application error delegate should notify the first responder objects starting from the highest priority one.

Parameters

_this	[IN] specifies a pointer to an IApplicationErrorDelegate object.
xEvent	xEvent [IN] specifies an error event

Returns: SYS_NO_EROR_CODE if success, an error code otherwise.

◆ IAEDOnStartApplication()

static sys_error_code_t IAEDOnStartApplication	(	IApplicationErrorDelegate *	_this,
		ApplicationContext *	pxContext
	)

inlinestatic

Called by the system just before the control is released to the application tasks.

Parameters

_this	[IN] specifies a pointer to an IApplicationErrorDelegate object.
pxContext	[IN] specifies a pointer to the application context.

Returns: SYS_NO_ERROR_CODE if success, an error code otherwise.

◆ IAEDProcessEvent()

static sys_error_code_t IAEDProcessEvent	(	IApplicationErrorDelegate *	_this,
		ApplicationContext *	pxContext,
		SysEvent	xEvent
	)

inlinestatic

The INIT task uses this function to deliver an error event to the application error manager delegate object.

Parameters

_this	[IN] specifies a pointer to an IApplicationErrorDelegate object.
pxContext	[IN] specifies a pointer to the application context.
xEvent	[IN] specifies an error event

Returns: SYS_NO_ERROR_CODE if success, an error code otherwise.

◆ IAEDRemoveFirstResponder()

static sys_error_code_t IAEDRemoveFirstResponder	(	IApplicationErrorDelegate *	_this,
		IErrFirstResponder *	pFirstResponder
	)

inlinestatic

Remove a first responder object rom the application error delegate.

Parameters

_this	[IN] specifies a pointer to an IApplicationErrorDelegate object.
pFirstResponder	[IN] specifies a pointer to the a first responder object to be removed.

Returns: SYS_NO_ERROR_CODE if success, an error code otherwise.

◆ IAEDResetCounter()

static void IAEDResetCounter ( IApplicationErrorDelegate * _this )

inlinestatic

Reset the counter of the AED. Usually an AED use some kind of timeout to check that all managed tasks are working fine. A task should call this method before a critical operation, that is for example a write operation in FLASH or EEPROM, or a long critical section. For convenience the managed task interface has a function IMTResetAEDCounter() that can be used by a task instead of call directly this function.

Parameters

_this [IN] specifies a pointer to an IApplicationErrorDelegate object.
